Your are here: Home >> Products >>Vacuum Degassing Tank

Directory
- Structure Schematic Diagram of Vacuum Degassing Tank
- Usages of Vacuum Degassing Tank
- Characteristics of Vacuum Degassing Tank
- Technical Parameters of Vacuum Degassing Tank
- Vacuum Degassing Tank Finished Picture

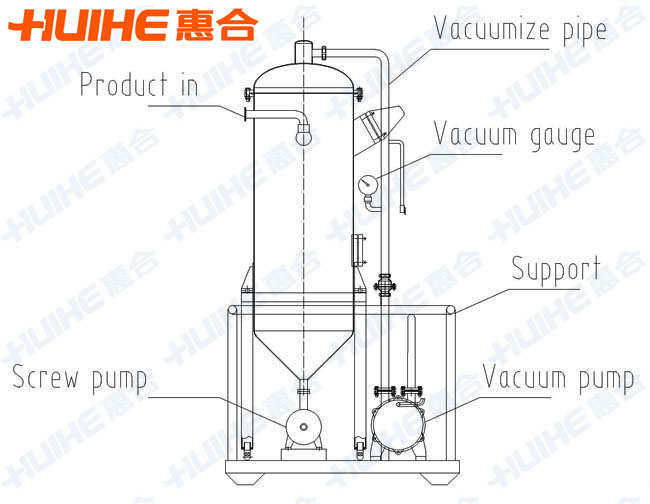

Structure Schematic Diagram of Vacuum Degassing Tank
Usages of Vacuum Degassing Tank
The vacuum degassing tank is widely used in soy milk, juice, beverage,etc.
Characteristics of Vacuum Degassing Tank
Technical Parameters of Vacuum Degassing Tank
Model |
HEZT-1 |
HEZT-2 |
HEZT-3 |
HEZT-10 |
HEZT-15 |
Processing power
|
1000L/H |
2000L/H |
3000L/H |
10000L/H |
15000L/H |
Vacuum degree |
6.4~8.7×10pa | ||||
Motor power |
3.95kw |
4.5kw |
4.5kw |
8kw |
9.5kw |
Body size |
1035×750×2840 |
1135×780×3040 |
1185×800×3140 |
1600×1700×3250 |
1750×1500×3500 |
Weight |
270kg |
350kg |
450kg |
600kg |
800kg |

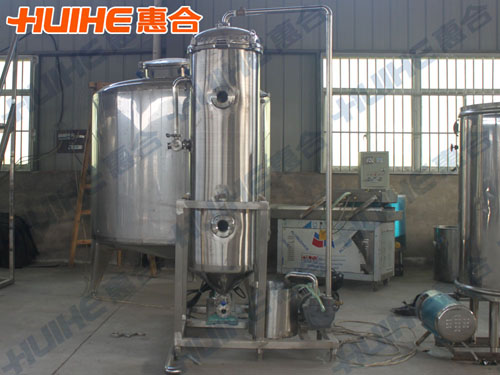

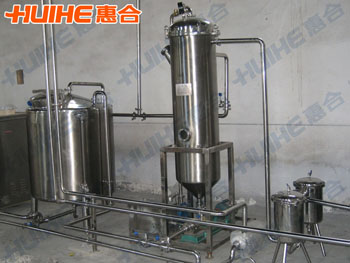

Vacuum Degassing Tank Finished Picture
