Horizontal Liquid Storage Tank

This series of horizontal liquid storage tank the used buffer and liquid storage facilities in the pharmaceutical, biotechnology, food, beverage, wine, spices, chemicals, oil and other industries.

Classification of Liquid Storage Tank

1. According to Structure: elliptical sealed head/conical sealed head

2. According to Material: there are SUS 304 and SUS316L

Structure of Liquid Storage Tank

The body of this series of stainless steel tank formed by cylindrical stainless steel, and equipped with sanitary manhole, cleaning ball, liquid level gauge.

1. The equipment is single layer structure.

2. The material is stainless steel SUS304 or SUS316L.

Usage of Liquid Storage Tank

It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.

Characteristics of Liquid Storage Tank

1. Reasonable design, advanced technology, automatic control and in line with GMP certification requirements.

2. With single or double-layer structure, and filled with insulation material according to user requirements..

3. Liner polished to Ra0.45μm, external use of mirror panels or matte board insulation. Open top inlet, reflux mouth, disinfection hole, cleaning hole, manholes and install 0.45μm air respirator.

Technical Parameters of Liquid Storage Tank

Model	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Height （mm）	600	800	800	800	1000	1220	1220	1500	1500
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	sanitary manhole, cleaning ball, liquid level gauge

Notes:

1. The technical parameters of storage tank is standard configuration. Any specific requirements, please point out.

2. The process parameters that need provided when choosing the stainless steel tank: the nature of material, working pressure, temperature, specific requirements, etc.

Technical Requirements of Liquid Storage Tank

1. File support: the structural size drawing of the device (PDF) and instructions are available.

2. Required by operated function, the following criteria are adopted to design, manufacture and test

A. << Standards for quality control of pharmaceutical production (Revised 1998)>> terms of Chapter IV 31-37;

B. << The Steel Pressure Vessel (GB150-1998)>>;

C. << The Steel Welding Normal Pressure Vessel (JB/T 4735-1997)>>;

D. << Food Machinery Safety and Heath (GB 16798-1997)>>.

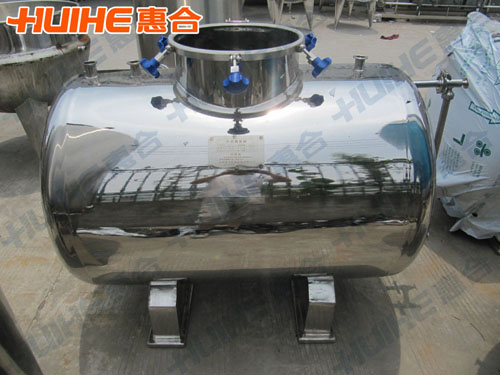

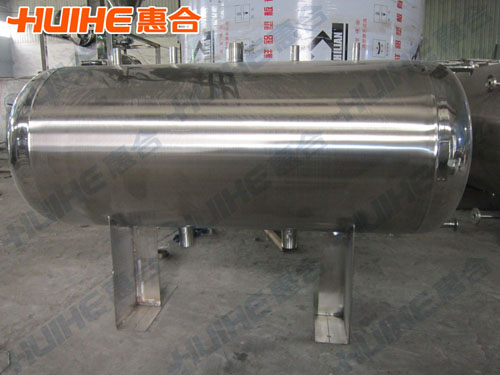

Horizontal Liquid Storage Tank Finished Picture
