Edible Fungus Fermentation Tank

Hangzhou Huihe Machine Facture Co., Ltd specializing in the production of edible fungus fermentation tank. It is mainly used for medicinal food bacteria cultivation mycelium liquid strain production fermentation equipment, is the use of biological principles of fermentation, to the hypha growth provides an optimal nutrition, ph, temperature, oxygen, and make the hypha grow rapidly, rapid propagation, reaches a certain number of fungus ball in a short time, complete a fermentation period.

Usages of Edible Fungus Fermentation Tank

It is a kind of stainless steel tank and has widely applied range.

1. Liquid strains of scientific research, production and the mass production unit of seed production and factory;

2. Used for the cultivation of a variety of microorganisms;

3. Edible fungi active ingredient of health food production;5. Production of mycelium, extracting bioactive ingredients to produce all kinds of food additives

4. Microorganism fermentation engineering to producing pesticide, medicine, hormone, etc.

Characteristics of Edible Fungus Fermentation Tank

1. With gas circulation, simple structure, convenient operation, quick hypha growth, strong vitality;

2. The tank electric heating sterilization, also can use steam sterilization, heating tube long life, easy to tear open outfit;

3. Adopt two-stage high efficiency, high precision filter, and absolute filtration, avoid bacterial contamination. Filter adopts reigned in the fermentation tank steam sterilization, do not need to tear open outfit, easy to use, long service life.

4. The PID temperature control mode of automatic temperature control, high accuracy, can accord different strains of sterilization, fermentation temperature and sterilization time can be set up freely. Medium sterilization, cooling time not more than 2 hours.

5. Fermentation tank and pipe, valves, filters, are all made of stainless steel, polished both inside and outside, no dead Angle

Technical Parameters of Edible Fungus Fermentation Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole, cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.

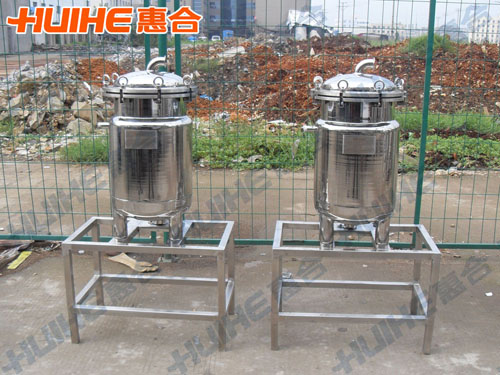

Edible Fungus Fermentation Tank Finished Picture
