Plate Sterilizer Machine,Plate Sterilizer Machine manufacturers

Plate Sterilizer Machine is sterilization equipment specially designed for dairy drinks or similar liquid materials. It is the ideal equipment that material can extend the shelf life purpose through sterilizing and cooling. According to users’ different requirements to material heating, sterilization, heat preservation and cooling, to design various technical requirements for different flow assembly, meet the technological requirements and have

kinds of security protection measures and high temperature alarm, low temperature function of the backflow. At the same time, according to users’ requirements, corresponding configuration of high accuracy of the automatic control system.

Classification of Plate Sterilizer

Automatic configuration：it adopts computer procedure to control PLC technology, according to set process requirements, to control whole process of production, with CIP cleaning procedures to automatically clean.

Semi-automatic configuration: the whole process of operation is semi-automatically control. Operator can control the pumps, valves and back flow function on the control panel. By the temperature control PID to maintain the sterilization temperature. Sterilization temperature has a continuous record.

Usages of Plate Sterilizer

Apply to milk, fruit juice, alcohol and other liquid the heating and heat sterilization, heat preservation and cooling process requirements.

Main Configuration of Plate Sterilization Machine

The unit mainly composed of the mass balance and conveying system, plate heat exchanger system, material pipeline system, hot water pipeline system, steam pipeline system, hot water heating system, material automatic backflow system, automatic temperature control and electrical control system.

Characteristics of Plate Sterilization Machine

1. The material and the heating medium are in their respective sealing system through the sexual contact heat realize heating, improve materials health;

2. Sterilization time is short, the nutrition of materials is not destroyed,

3. The entire unit adopts stainless steel material, make sure to the national food safety equipment on the drinks hygienic requirements;

4. Good heat transfer effect, high heat recovery, less energy consumption;

5. The main control components, valve parts and accessories are imported parts, with long life.

6. Adopting PLC control, may to the material of each heating temperature, hot water temperature, the steam flow adjusting to carry out automatic control, and is equipped with the material automatic backflow system, ensure materials sterilization effect;

7. Simple structure, easy to clean, convenient operation, low cost of maintenance.

Main parameters of Plate Sterilizer

Process parameters: 5 ℃ to 65 ℃ homogenizing to 95 ℃ to 140 ℃ (4 S)-25 ℃

Medium: ice water 1:1 (2 ℃) cooling water 1:1 (25 ℃)

Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Tube diameter(Φ)
Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Material	Steam	Medium
HE-BR0.1-NN-1	1	40	5.0	3.5	1.8×1.4×1.8	840	25	DN25	25
HE-BR0.1-NN-1.5	1.5	60	5.0	3.5	1.8×1.4×1.8	880	25	DN25	25
HE-BR0.25-NN-2	2	80	5.0	4.1	1.8×1.6×2.0	910	38	DN25	38
HE-BR0.25-NN-3	3	120	5.0	4.1	1.8×1.6×2.0	980	38	DN25	38
HE-BR0.25-NN-4	4	160	5.0	4.1	2.0×1.6×2.0	1050	38	DN25	38
HE-BR0.25-NN-5	5	200	5.0	4.1	2.3×1.6×2.0	1130	38	DN32	38

Notes:

1. The parameters of plate sterilizer in the chart are reference( in kind prevail), if the customer requires otherwise, please put forward.

2. process parameters that need provided：material properties, sterilization process, specific requirements, etc.

3. auxiliary equipment: gas storage tank, air compressor, water storage tank and boiler. (customer need to equipped by themselves).

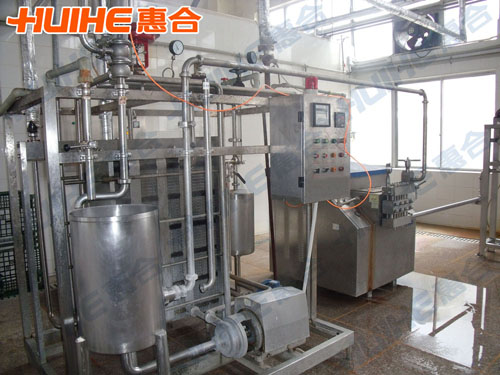

Plate Sterilizer Machine Finished Picture
